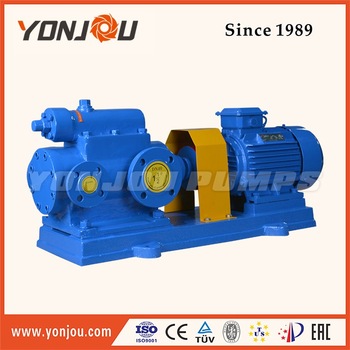

LQ3G45X42 46 1 Mpa High Viscosity heavy light fuel hotl Oil Three Screw Pump
LQ3G45X42 46 1 Mpa High Viscosity heavy light fuel hotl Oil Three Screw PumpLQ3G45X42 46 1 Mpa High Viscosity heavy light fuel hotl Oil Three Screw PumpLQ3G45X42 46 1 Mpa High Viscosity heavy light fuel hotl Oil Three Screw Pump

LQ3G45X42 46 1 Mpa High Viscosity heavy light fuel hotl Oil Three Screw Pump

FOB Price:
US 1-10000 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
6600 Set/Sets per Month
Port:
Ningbo/Shanghai
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,D/P,T/T,Western Union,MoneyGram
Brand:
YONJOU
Products Model:
LQ3G
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YONJOU

    Model Number: LQ3G

    Place of Origin: Zhejiang, China (Mainland)

  • Theory: Screw Pump

    Structure: Screw Pump

    Usage: Oil

  • Power: Electric

    Standard or Nonstandard: Standard

    Fuel: motor or diesel

  • Pressure: High Pressure

    Application: Mine

    Certificate: CE/ISO

  • Color: ALL

    warranty: one year

    material: cast iron

  • OEM: YES

    MOQ: 1 SET

    FACOTRY: YES

  • Material: cast iron

    Voltage: 220V/380V

    Type: Horizontal

Packaging & Delivery

  • Packaging Details: plywood case or carton per LQ3G45X42-46 1 Mpa High Viscosity heavy light fuel hotl Oil Three Screw Pump
  • Delivery Detail: 5 days after your payment

Specifications

LQ3G45X42-46 1 Mpa Three Screw Pump/Light Fuel Oil Pump/High Viscosity/High Temperature Heating Fuel Oil Pump Hot Oil Pump



Overview and purpose:



    Three screw pump is suitable for a variety of non-corrosive oil and similar oil and lubrication liquid. Conveying the liquid viscosity range is generally 3.0-760mm2 / s (1.2-100oE), the high viscosity of the medium may be followed by a warming Visbreaking conveyed. Its temperature does not exceed 350 °C.



    Three screw for conveying fuel oil, lubricating oil, hydraulic oil, crude oil, asphalt and other similar oil lubricants and lubricating liquid.



    Three screw pump lubrication pump in the industrial field, in the hydraulic system for hydraulic pump for conveying and booster pump in the fuel system, transmission and fuel pumps in the oil system.



Product Features:

  (1)  The medium is a straight line, without agitation and without pulsation;

  (2)  Low vibration, low noise;

  (3)  High pressure, high efficiency;

  (4)  The structure is simple, easy accessibility;

  (5)  Minor wear, long life.



Technical parameters:

Performance:

Flow range: 2.4m ³ / h to 240m ³ / h

Head range: 60m ~ 250m

Motor power: 1.1kw ~ 90kw



Note: If you have special requirements, please contact our technical staff! (0577-67981666)



Model significance:



Example: LQ3G 60 * 2-46



LQ3G - three screw pump

     60 - Screw diameter

      2 -  screw pitch

     46 - screw the helix angle of 46 °

TESTING
