CWX-15N/Q Mini electric ball valve,CR02/CR03 3 wire motorised control valve

CWX-15N/Q Mini electric ball valve,CR02/CR03 3 wire motorised control valve

FOB Price:
US 5-50 / Piece
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
2000 Piece/Pieces per Month
Port:
Ning Bo
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,D/P,T/T,Western Union
Brand:
GOGO
Products Model:
CWX-15N/Q
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: GOGO

    Model Number: CWX-15N/Q

    Place of Origin: Zhejiang, China (Mainland)

  • Standard or Nonstandard: Standard

    Structure: Control

    Pressure: Medium Pressure

  • Power: Pneumatic

    Material: Stainless Steel

    Temperature of Media: Medium Temperature

  • Media: Water

    Port Size: 1/2’ 3/4’ 1’

    Operating Temperature: -5~60°C

  • type: normal colse

    For: Air ,gas ,oil ,water

    Voltage: DC3-6V 12v AC/DC9-24V AC220V

  • Wiring: CR01, CR02 ,CR03 ,CR04 , CR05

    Max Working pressures: 10bar

Packaging & Delivery

  • Packaging Details: Carton
  • Delivery Detail: 7 days

Specifications

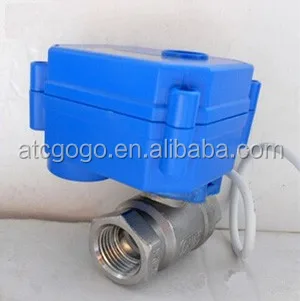

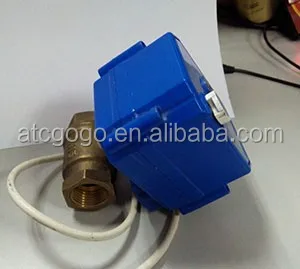

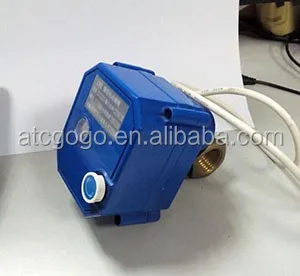

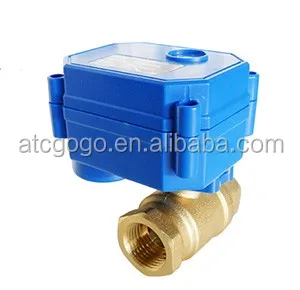

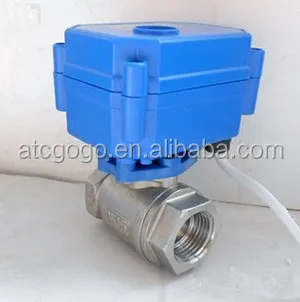

CWX-15N/Q Mini electric ball valve,CR02/CR03 3 wire motorised control valve



  Specification



Product size : G (bsp) 1/2"-1"
Maximum working pressure : 1.0Mpa
circulation means :  fluid, air
rated voltage : DC 3-6V 12v AC/DC9-24V AC220V
Wiring Control Methods : CR-01,CR02 ,CR03 ,CR04 , CR05
Working current : 80mA
Open / close time : 3-5 S
Life time : 100000 veces
Valve body material : SS304; Brass
Actuator Material :  engineering plastics
Seal Material : EPDM y PTFE
Rotation of actuator : 90
Max. par force : 2 n. m
Cable length : 0.5 m
Ambient temperature :-15 ~ 50
Liquid temperature : 0 ~ 80C
Manual override : No
Indicator : No
Protection class : IP65



 Dimensions

   cables

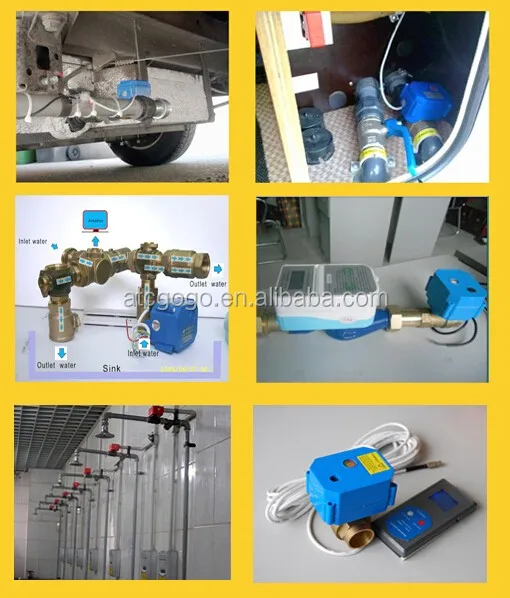

Applications:
HVAC
Water treatment
Small equipment for automatic control
Replacing solenoid valve, particularly when solenoid cannot work reliably
CWX-15 motorized water valve 3 way electric ball valve for automatic control






Packaging & Shipping

                               1.Inner packing: opp bag, then carton box for each product                                                                                                                              2.Outer packing: export standard carton, Foam outside protecting the goods against damage                          3.Usually we ship your order by sea or by air...                                                                                                    4.We do our best to ship your order within 1 week after receiving your payment                                                5.We'll tell you the tracking number once your order has been sent                                                                    6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
