CE Certification Industrial Water Chiller Refrigeration Cycle

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

200 Set/Sets per Quarter

Port:

Qingdao, China

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Mgreenbelt

Products Model:

MG-15C(D)

Products Details
Company Profile

Quick Details

Brand Name: Mgreenbelt

Model Number: MG-15C(D)

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Packaged air cooled chiller in plywood case.
Delivery Detail: 25 days

Specifications

CE Certification Industrial Water Chiller Refrigeration Cycle

Description of Industrial Water Chiller Refrigeration Cycle

Industrial air cooled scroll chillers are widely used in plastic injection, extrusion, plating, molding, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning and various aspects of water supply, especially suitable for the inconvenience for water and the water pipe ground.

Technical Parameter of 40kw Small Stationary Water Chilller

Model	MG-15C(D)
Water chiller operation voltage	220v,380v,415v,440v,460v,480v
Refrigerant	R407c,R22,R410a
Cooling capacity	41.8kw
Power consumption	16.31kw
Refrigeration compresor power	13.6kw
Evaporator	Shell and tube/water tank with coils
Water tank capacity	270L
Cooling water	7.17m3/hour
Pipe diameter	DN40
Condenser	Finned copper tubes with cooling fan
Cooling air	15000m3/hour
Water pump power	1.5kw
Head	20m
Industrial chiller sizing	1800x1000x1600mm

Safety Protection of Small Water Chiller Units

1. Lack of phase, reverse phase protection.

2. Motor overload protection.

3. High/low pressure protection.

4. Automatic alarm device for lacking of water.

5. Anti-freezing protection.

6. Coil overheated protection.

7. Water shortage protection.

8. Full-automatic temperature control system.

Air Chiller Unit Parts

	Main parts: refrigeration compressor Brand: Copeland, Panasonic, Danfoss Power: 13.6kw
Main parts: air cooled condenser (finned copper tubes) Anti-dirty and easy clean
	Main parts: cooling fan Installed on top of chillers
Water pump is mounted in controller and wired to motors Users do not need to install water pump outside
	Microprocessor control system LED displayer Provide diagnostic and precise temperature control

Industry Used Air Cooled Chillers Working Principle

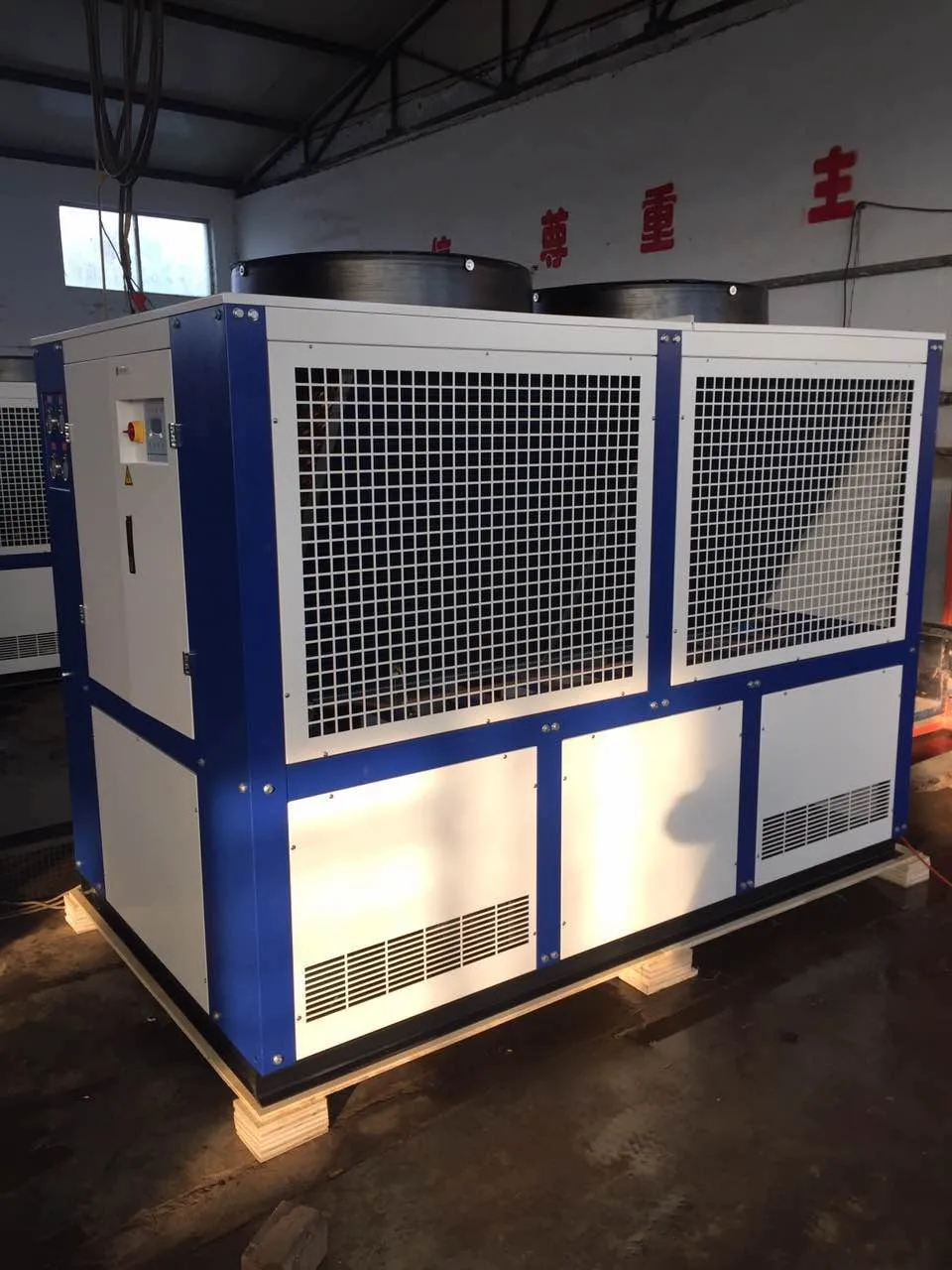

Air Condenser Cooling Chiller Picture

Service:

1. Warranty: 12 Months.

2. Customerized accept.

3. All extral parts for the machine can be purchased by agent price from Mgreenbelt.

4. Technical support and after-sales service free of charge.

5. Professional technical team and Sales give troubleshooting procedures.

6. Door-to-door service if necessary.

Mgreenbelt Water Chiller Manufacturers

Mgreenbelt industrial water chiller manufactures air cooled water chiller, water cooled water chiller, stainless steel chiller, screw chiller from 3.5KW(1Ton)to 1500KW(500Ton), oil chiller, mold temperature controller units, cooling tower, shell and tube heat exchanger and all refrigeration spare parts.

Contact: Lean

Mobile: 008617686681006

E-mail: cnchiller(at)gmail.com

Skype: lzchiller

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
